Item specifics
  • Display Function: Video
  • Model Number: SRY-IF-P5
  • Tube Chip Color: Full Color
  • Brand Name: CNSRYLED
  • Usage: Indoor
  • Pixels: 5mm
Product Description

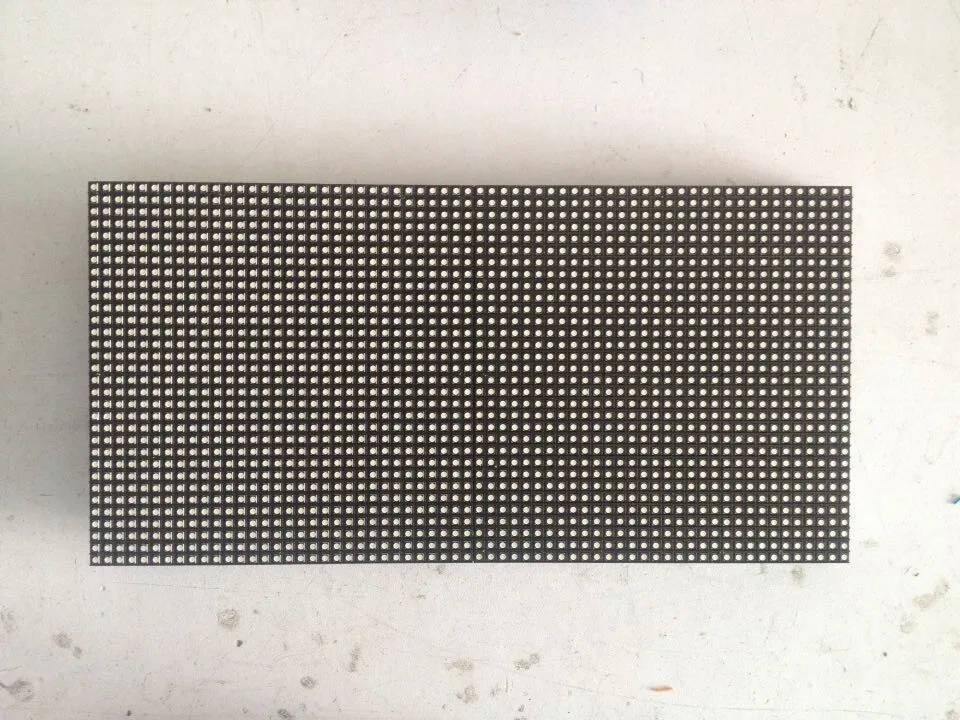

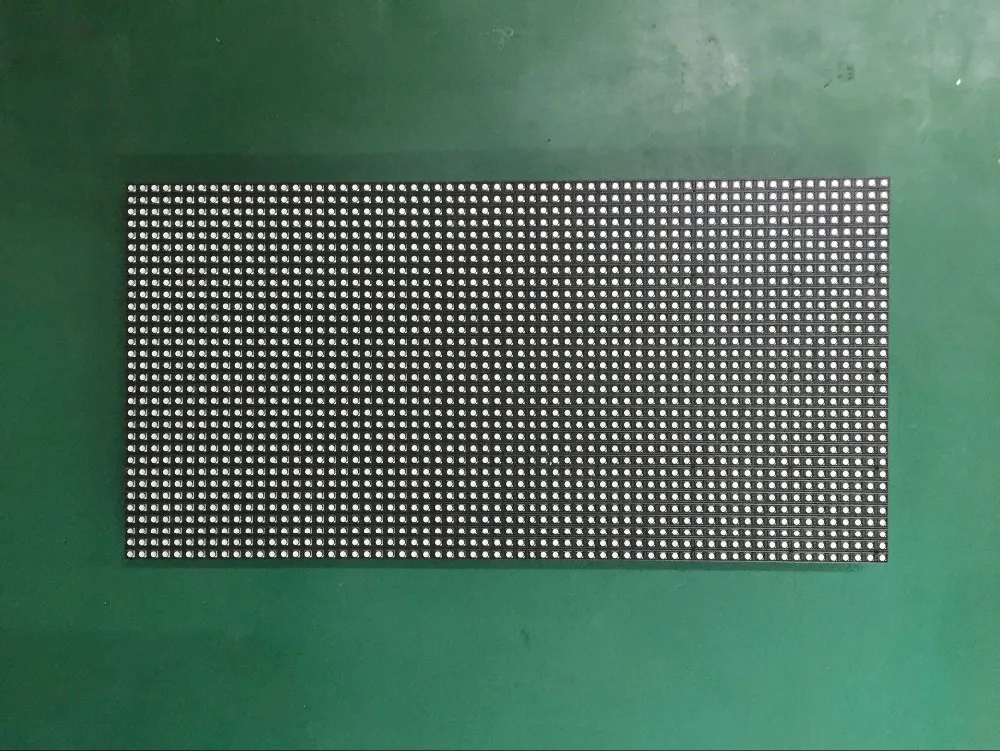

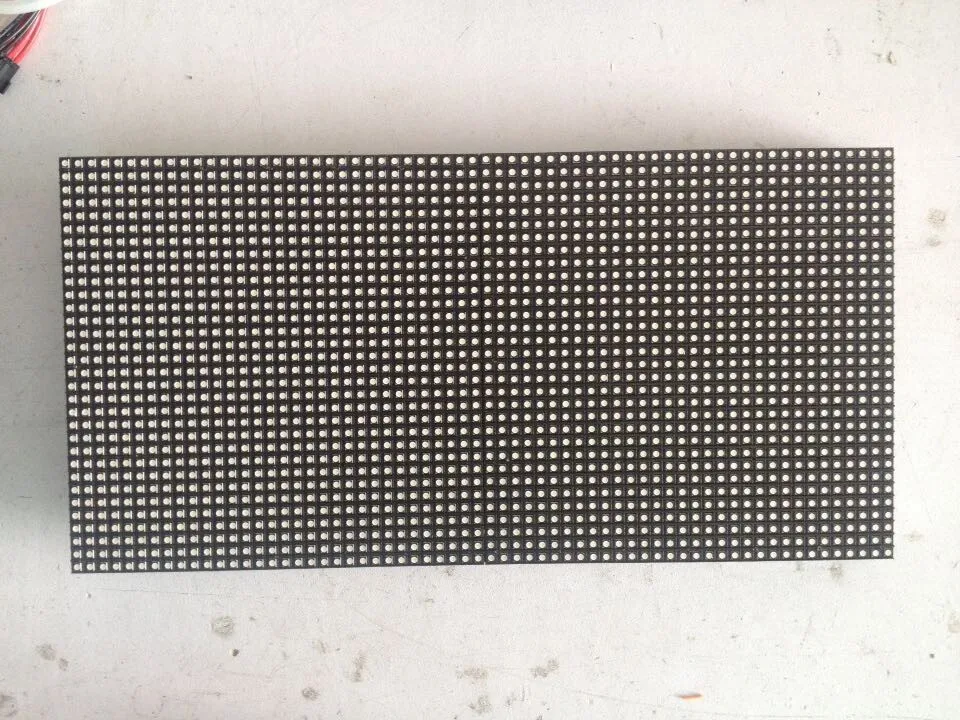

SRY P5 320*160mm full color led module P5 RGB SMD3528 indoor high resolution LED matrix display video screen modules

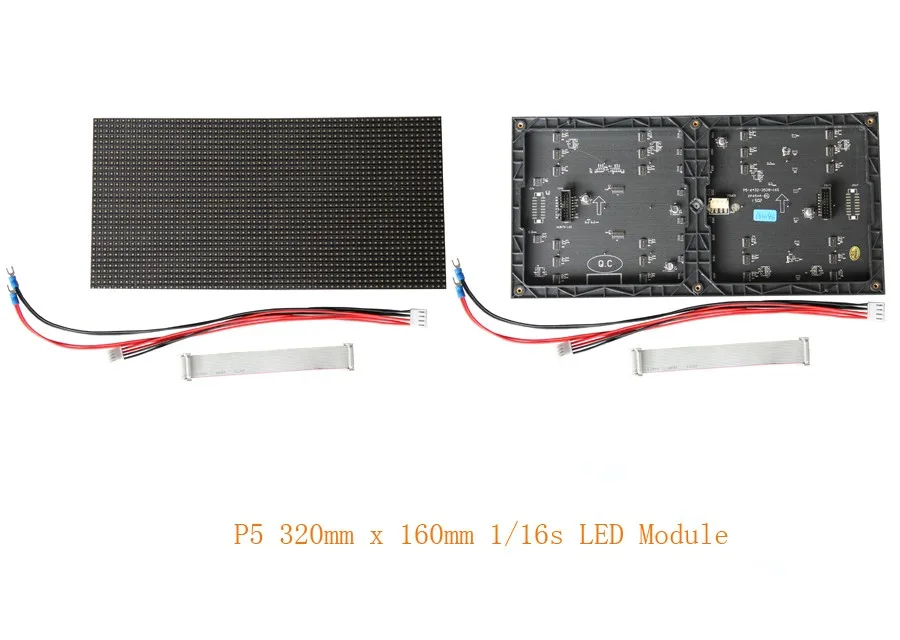

Pay attention: The module only including short power cable and data cable, no magnet and screws. And 1pcs power cable support 2pcs led modules, if you need 1pcs power cable for 1pcs led module, please leave message when place order, thanks!!!



Feature:

1. Cabinet Can Be Front or Rear Maintenance


2. LED Chip: SMD3528 white leds


3. LED Module Size: 320*160*17mm


4. LED Cabinet Size: 640*640mm or 960mm*960mm


5. Control Software:Novastar / Linsn / Colorlight / Xixun



6, Cabinet Material: Iron, Aluminum, Die casting aluminum, die casting magnesium

Description:


1, High resolution: P5 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution.



2, P5 SMD3528 LED screen is of large viewsing angle at 140 degree horizontally and vertically.



3, Seamless connection: Indoor full color LED screens cabinet surface is uniform.



4, Ultra slim: P5 full color indoor LED display is designed at 95mm thickness for convenient installation when space is limited.



5, High refresh frequency: This ensure P5 rental LED screens suitable for rental projects with Live broadcast,without water wave and shake.



6, P5 indoor full color LED Display is utilizing full black color LED chips to reach pure and true color effect.


Competitive Advantage:

1, P5 indoor fixed led display uniform in brightness and color.

2, Full color P5 indoor fixed led display is utilizing full black color LED chips.

3, Indoor fixed led display contrast ratio up to 4000:1 to react real color of the content.

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade.

5, Large viewing angle at 140 degree horizontal and vertical.

6, P5 indoor fixed led display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use.

Specification:


Pixel Pitch

5mm

Pixel Density

40000dots/sqm

Color Configuration

1R1G1B

Module Size

320mm x 160mm

Drive Mode

1/16 Scan

Standard Cabinet Size

640mm x 640mm

Viewing Distance

5m-50m

Viewing Angle

H: 140°; V:140°

Refresh Rate

2000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Power Input

AC110V/ 220V ±10,  50HZ

Max Power Consumption

800W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-30~+70 degree

Working Temperature

-20~+50 degree

Blind Spot Rate

<1/10000

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Operating System

Win 98, Win2000, XP, Win7, Win8, Win10

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc


Applications:


Movie theaters, clubs, bars, stages,  subway, airports, stations, gas stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, commercial buildings, meeting rooms


20150424145318 P5 indoor module  (2) P5 indoor module  (3) P5 indoor module  (4) P5 indoor module  (5) P5

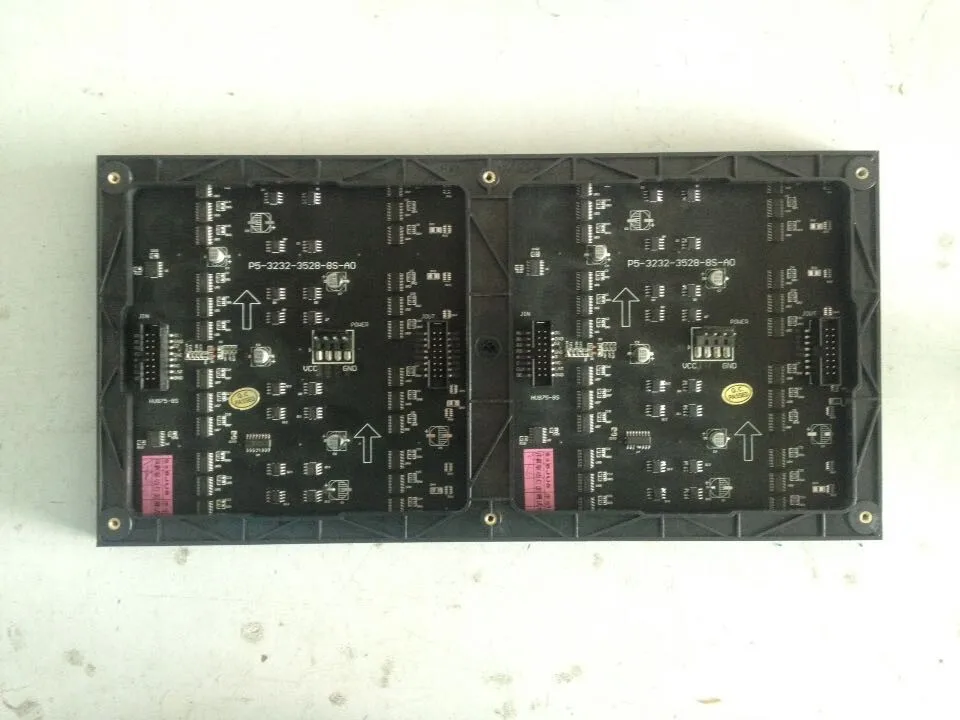

frontrear













640x640 outdoor (3)640x640 outdoor (5)640x640 outdoor (7)640x640 outdoor (8)





89106118125









1. With professional technical and development team, we are a direct Factory specialized in led display control card, led display module, power for led display, led display, and other led display accessories etc.

2. With more than 10 years’ experience, modern production and test equipment,perfect enterprise management system,high quality research and management team, high quality led display controller, all above make us become popular supplier.

3.  With our high quality and service our products have been exported to various countries and regions in Southeast Asia, Australia, Europe and America etc.

QQ20151107105707QQ20151107105640



We also supply Flight Case

if you need pls contact us.

IMG_1182IMG_1183

IMG_0811
