Item specifics
  • Display Function: Video
  • is_customized: Yes
  • Brand Name: MDS RISE
  • Tube Chip Color: Full Color
  • Usage: Outdoor
  • Model Number: Linsn TS802 sending card
  • Pixels: ALL of pixel
  • Place of Origin: China (Mainland)
Product Description

Due to LINSN has been not produced TS801D, now all of is TS802D, TS802D include al of function of TS801D,but it support more pixel, the size is also same

Ts802  = TS801

RV908 =  RV801

For full color RGB display synch control system sending card
1.Max Control range: 1600 * 400 / 1280 * 512 pixel
2.Scan type:1/4,1/8,1/16
If you need support static scanner, i will use RV901 for replace, please contact wit me before order
3.Communicate mode:DVI & Twisted Pair  UPT / RJ45
4.weight:300g
5. Size:144.0mm X 91.2mm
6.Working voltage:DC 5-12V


802 - 908t-ok

Fully compatible with the seventh generation
Upgrade based on the seventh generation development, the original function of many more new features more powerful, more stable and more reliable system.Systems can be mixed with seven generations.
Support 10-bit color

The old system of 8-bit color can display 256X256X256 = 1677216 colors, the new system color number 1024X1024X1024 = 1073741824 colors, the new system the number of colors is 64 times the old system.
Intelligent connectivity

With a display of multiple receiver card / box (including the spare) can be exchanged without any re-set, to receive the smart card to identify the need to display the contents of the earth.
Intelligent monitoring

Every receiving card has four temperature sensing and fan control output, according to the temperature limit set by the user to control four intelligent fan speed.
Company icon

When the power did not send a card on the display automatically when the set point of the company\'s image, image pixels to 128X128, 16K colors for the color.
Support within any 16-bit scanning

1,2,4,8,16 original system only supports scanning, scan the new system 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 .
Support the module width of any number less than 64

The old system only supports 2,4,8,16,32,64-width module, the new system is 64 or less arbitrary number.
Support shaped split display

Every receiving card, maximum support 1024 segments split for abnormal / text screen.
Support more than content insertion

Each access point can be set to the number of pixels of one or more empty for abnormal screen.
Driver IC with PWM support

Need special driver chip, thereby enabling the display effect is even more perfect.
Support for hardware-by-point correction

Need special driver chip, thereby enabling better display point by point correction.

Support-by-point detection

With special driver chip to be dynamically display flaw detection situation.
By-point correction, by card (box) correction

Support a single point-by-point correction, 2 × 2 , 4 × 4 points and 8 × 8 four kinds of correction modes, the maximum correction 6144 points / module, red, green and blue 256. By card (box) correction for the display of the inter-tile color correction, red, green and blue 256.
Identification card function

Intelligent identification program can recognize two-color, full-color, virtual, lighting and other various boards of various drive scanning and a variety of signals to identify the rate of 99%, a set of cards in hand, doing screen of mind.
65536 (64K) gray set of arbitrary functions

Customers can monitor the situation never gray to 65536 (64K) adjust the gray, so that you achieve the best screen display.
Refresh rate be set up, lock, synchronization

Refresh rate from 10Hz-3000Hz can be arbitrarily set, refresh rate lock feature allows the display refresh locked at integral multiple computer monitors refresh rate, and to prevent tearing, to ensure perfect image reproduction. Phase-locked range of 47Hz-76Hz.
Loading Capacity

Maximum with dual cable set 1280x1024, the largest single cable with load 1024x640, 1280x512
Dual-cable hot backup

Receiving the card A, B two-port can be used as input or output ports can be used to simultaneously control two computers one screen, when a computer problem occurs, automatically take over another computer, a computer can also be used for dual-network line control, when a cable problem, the other automatically takes over a network cable, allows the display of the work to get maximum protection.
Multi-display Synchronous and Combination Functions


Send cards to support a control panel with a multi-block, multi-block-screen work status can be any combination, synchronous display, independent play, etc., by shortcut keys, fast switching.
256 automatic brightness adjustment

256 brightness adjustment feature allows you to adjust the display brightness is more effective.
Program online update feature

If the display of the receiver card program to be upgraded, just open the big-screen power through the LED studio can upgrade without having to receive the card can be removed from the big-screen update.
Break through the traditional concept of no DIP switches

No DIP switch design, all the settings set by the computer.
Test function

Receiver card integration test function, do not send a card to take the test screen, slash, gray, red, green, blue, light and other full-test mode.

Long distance

Transmission up to 170 m (measured), to ensure transmission to 140 meters.






802 - 908t-okrv908t-1-ok802-sending-ok

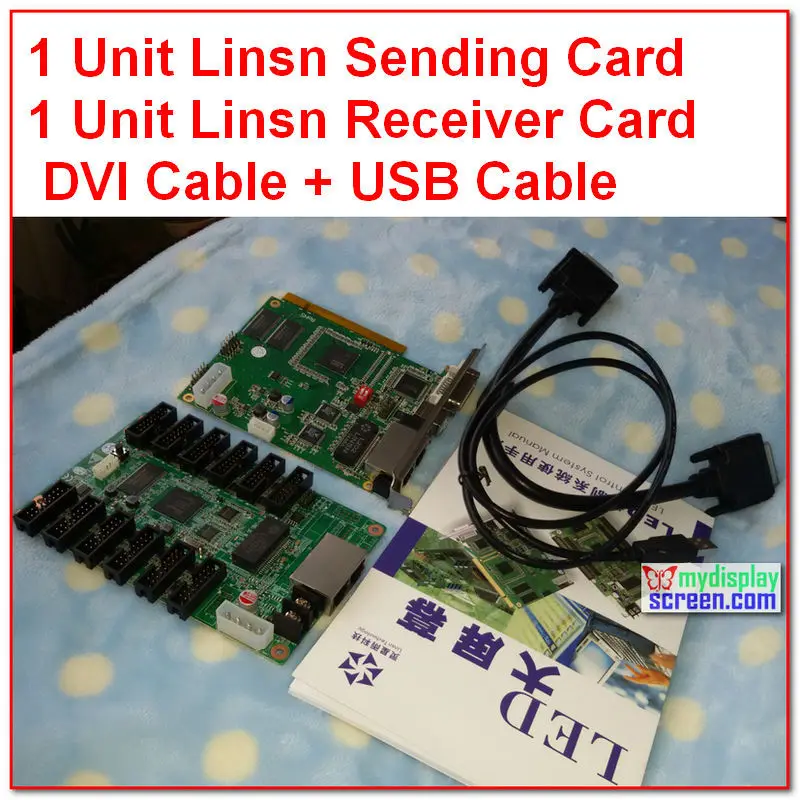

Packing list

1 pcs sending card

1 pcs receive card

1 PCS DVI male/male cable

1 PCS USB cable

1 set CD-Software



All package will take 4-5business days -> DHL/FEDEX/UPS

Tracking number : Yes



TERMS:

  • 1 year warranty.
  • If the item is defective, please notify us within 3 days after the receipt of the item.
  • The item shall be return in its original condition, in order to get it refunded or replaced.
  • The item is not refundable after 7 days, it will only be repaired.
  • We do not have responsible for tax in your country

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.9kg (1.98lb.)
  • Package Size: 25cm x 20cm x 8cm (9.84in x 7.87in x 3.15in)
