Item specifics
  • Display Function: Video
  • is_customized: Yes
  • Tube Chip Color: Full Color
  • Usage: Outdoor
  • Model Number: LM-P2/P3/P3.9/P4.8/P4/P5.2/P6.9/P8.9/P10.4/P12.5/P25/P31.25mm
  • Pixels: P2/P3/P3.9/P4.8/P5.2/P6.9/P8.9/P10.4/P12.5/P25/P31.25mm
  • Screen Dimension: 2x2mts/3x2mts/4x3mts/5x4mts/6x4mts/7x5mts/10x8mts
  • LED Control system: Nova/Linsn
  • Waterproof: IP65
  • Brightness: 7500nits
  • LED Chips: Cree / Nichia / Epistar / Opto / Silan
  • Power supply: Meanwell/G-energy/YHY/CZCL
  • Refresh frequency: ≥3500HZ
  • Size of LED Cabinet: 500mmx1000mm/500mmx500mm/512mm x 512mm/640mm x 640mm/480mm x 480mm
  • Lifespan: ≥100,000
  • Material Of LED Screen: Die Casting Aluminum Rental
Product Description

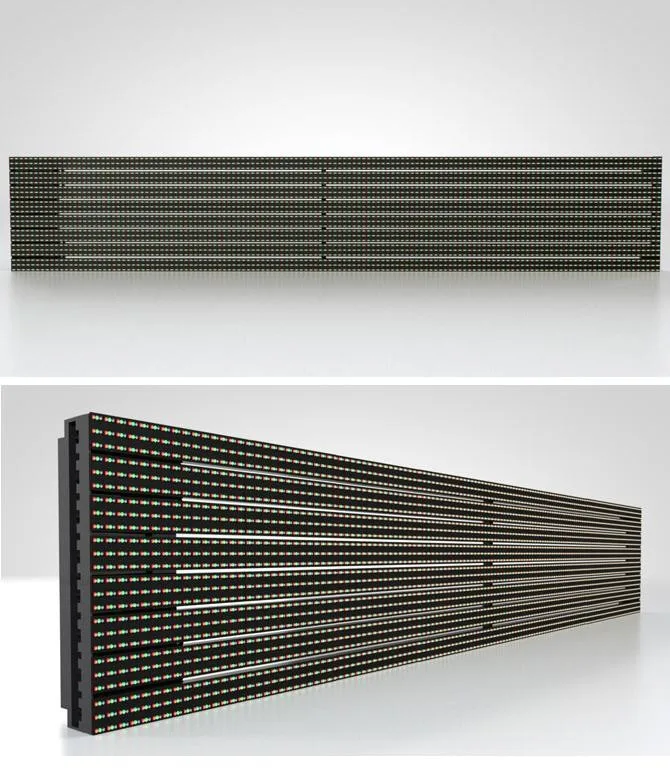

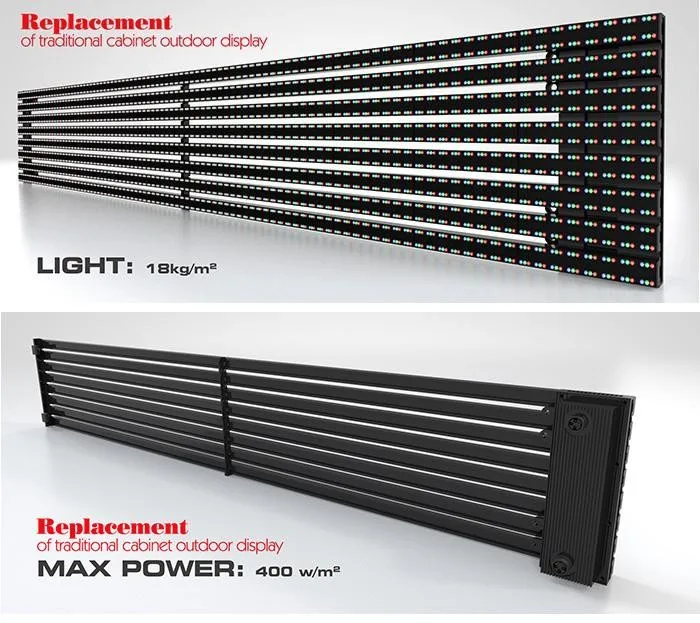

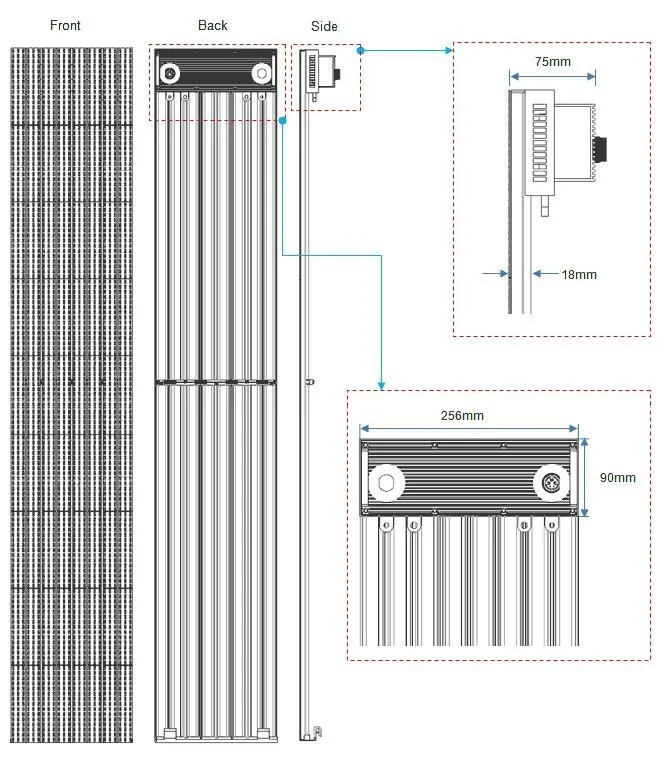

Outdoor Aluminum Rental LED Strip Mesh Grid Curtain
Module Pitch/mm P6.944  P5.2  P8.925 P10.41 P12.5
Cabinet size/mm 500x1000 500x1000 500x1000 500x1000 500x1000
Density of pixel/(dots/m2) 20,736 36,864 12,544 9,228 6,400
Led encapsulation SMD3528 SMD3528 SMD3535 SMD3528 SMD3528
Resolution of module 72x144 96x192 56x112 48x96 32x64
Main Optimum viewing distance 7 5 8 10 12
View angle 160 H,120 V 160 H,120 V 160 H,120 V 160 H,120 V 160 H,120 V
Average power consumption/W/m2 150 120 400 140 120
Max power consumption/W/m2 300 200 800 280 250
Driving method 1/9 scan constant  current 1/8 scan constant current 1/4 scan constant current 1/4 scan constant current 1/2 scan constant current
Refresh rate Hz/S 2500 2500 2500 2500 2500
Luminance of white balance 2200cd/m2 2200cd/m2 2200cd/m2 2200cd/m2 2200cd/m2
Operation of Environmental Temperature below 30  to  above 50
Working voltage 110-220 VAC/+/- 10%
Grey scale/color displaying colors16.7M(synchronized)
Brightness adjustment 256 levels of each color(manually),8 levels of each color(automatically)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition,etc
Control system linsn(sending card,receiving cards and Hubs)
Average of non-failure life >5,000h
Life span >100,000h
Functionless  dot rate <0.0001


P6_25_Portable_Extruded_Aluminum_LED_display20130704171212

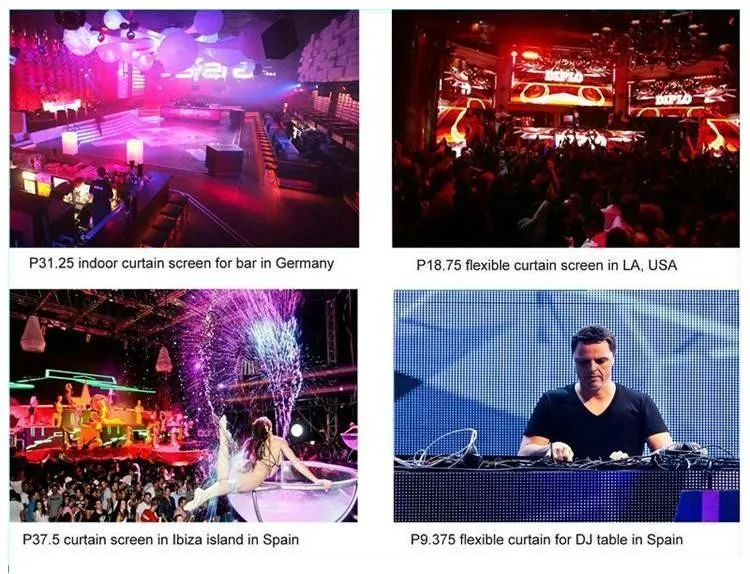

Indoor & Outdoor super lightweight soft flexible led curtain series:



Model number of led soft flex display screen:

Indoor Flexible Screen: P6, P9.375, P10, P15.625, P18.75, P20, P25, P31.25, P37.5

Outdoor Flexible Curtain:  P9.375, P10, P15.625, P18.75, P20, P25, P31.25, P37.5



12320130711165633LEEMAN LED CURTAIN

415 (2)Wholesale_P9_375_Flexible_Led_Video_Display990493597_466



New / Hot Sales LED Products



Indoor & Outdoor Transparent LED Strip Video Wall Screen For Outdoor Building Advertising Series:

tbar10-1chongqingyingli-mimageimage
Packaging Details
  • Unit Type: Square Meter
  • Package Weight: 65.0kg (143.30lb.)
  • Package Size: 120cm x 110cm x 20cm (47.24in x 43.31in x 7.87in)
