Item specifics
  • Display Function: Video
  • is_customized: Yes
  • Tube Chip Color: Full Color
  • Usage: Indoor
  • Model Number: P2.5-16161RGB
  • Pixels: 2.5MM
  • Scan: 1/32
  • Size: 160*160MM
  • Density (HP / ㎡): 160000
  • Constant current drive: ICN2038
  • Shadow elimination: ICN2012
  • ㎡ maximum power (watts): 500W
  • Brightness (CD / ㎡): 300~1600
  • LED lights: 2020 (black light)
Product Description


Module: P2.5 Full Color LED Module

 Pixel type

Real pixel

 Pixel pitch

2.5 mm

 refresh frequency

>=400HZ

 Module Size

160X160mm

 Horizontal View Angel

> 110 degree

 Model Pixel

64X64 Pixels

 Working Environment

Temp:-20Celsius degree-+60Celsius degree

Humidity : 10%-90%

 lattice density

160000dots/square meter

 Working voltage

AC100-120V

AC 220-240V

 Pixel form

1R1PG1GB SMD2121

 Lifetime

>=100000 hours

 Best viewing distance

2.5m~30 m

 Gray scale

12 bit/ 1 color

 Max power consumption

1400W/square meter

 Color display

manual adjust

 Ave power consumption

600W/square meter

 Brightness

2200 cd/square meter

 warranty

 1 year

 Blind spot rate

<0.00001

 Drive mode( Optional)

Constant current 1/16 scan

 Waterproof Class

IP43

Control system

 DVI card+Full color control card

 Software

Support window series  system



Each Package Included :

  • P2.5 Full Color LED Module * 5 pcs
P2.5 Indoor full color LED module 116 scan SMD 2121 3in1 RGB 16080mm LED Display, pin2dmd,indoor full color led screens (8)
what is the difference?
1) the bigger size, the  High Flatness
2) the bigger size, choose bigger module, you can reduce the assemble time

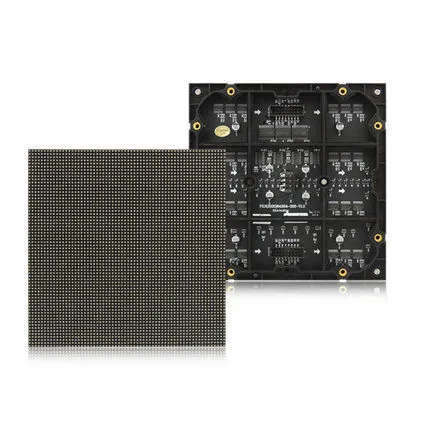

P2.5indoor LED display screen module:

P2.5 Indoor full color LED module 116 scan SMD 2121 3in1 RGB 16080mm LED Display, pin2dmd,indoor full color led screens (2)

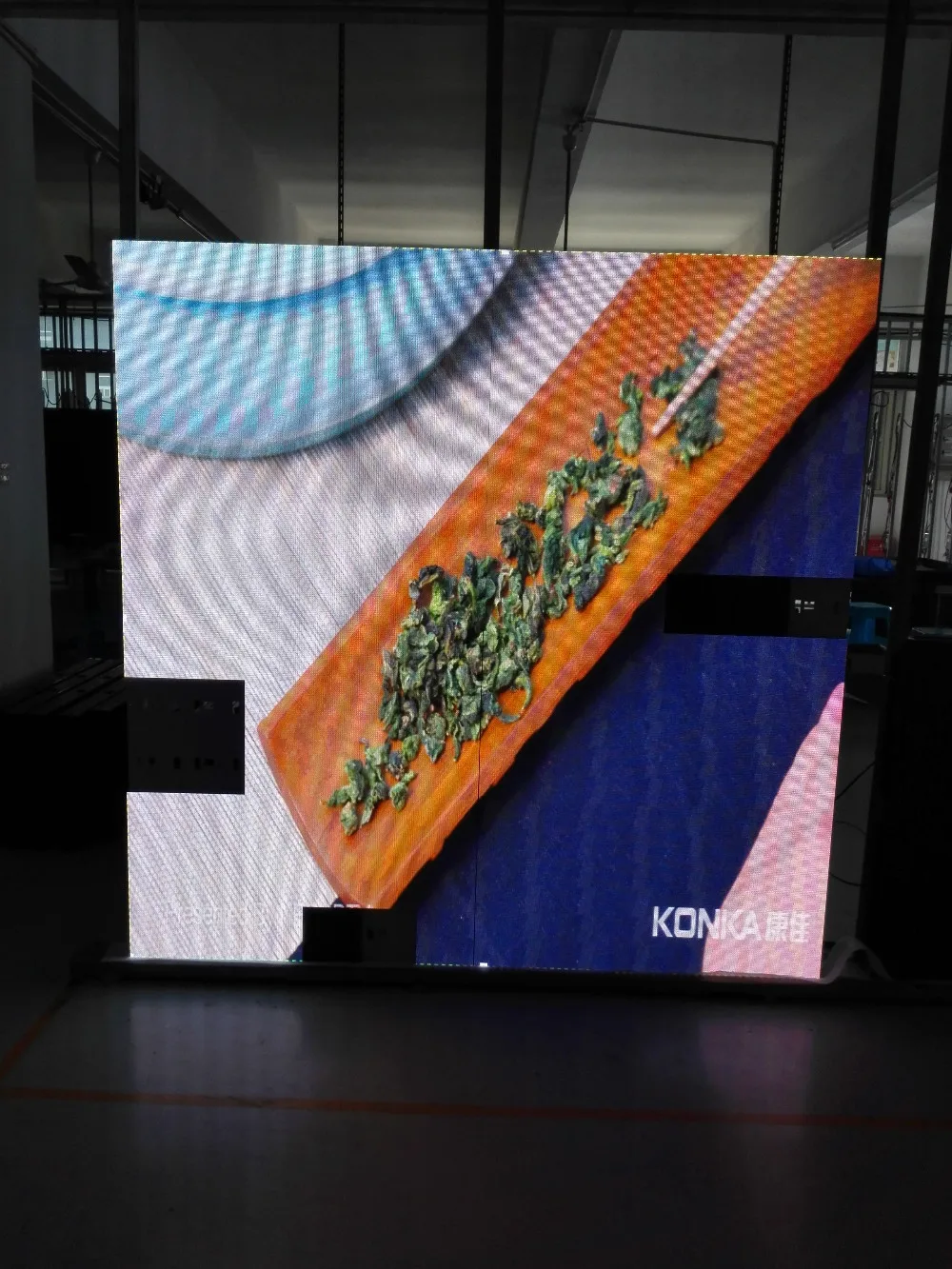

IMG_20150429_123722

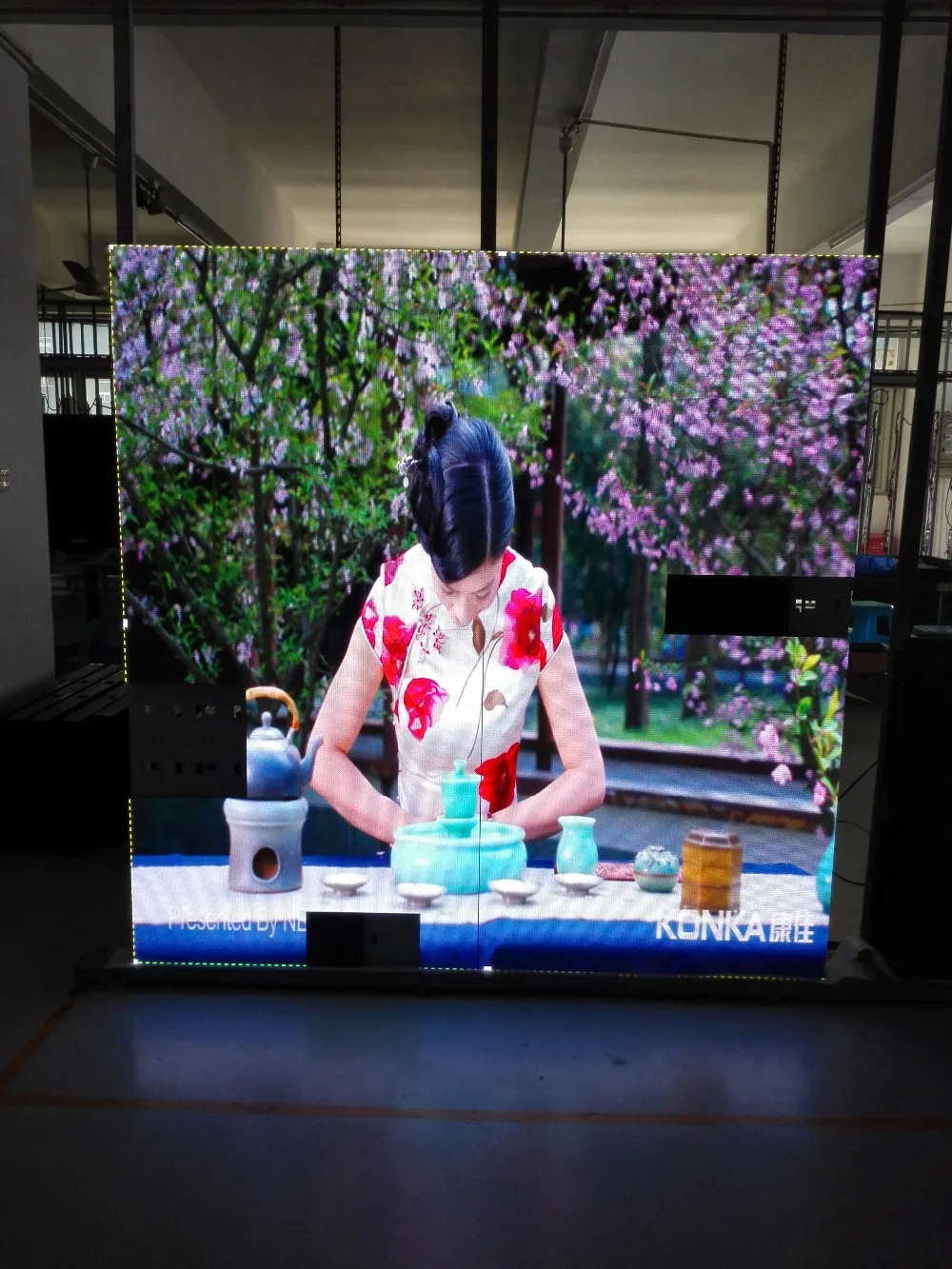

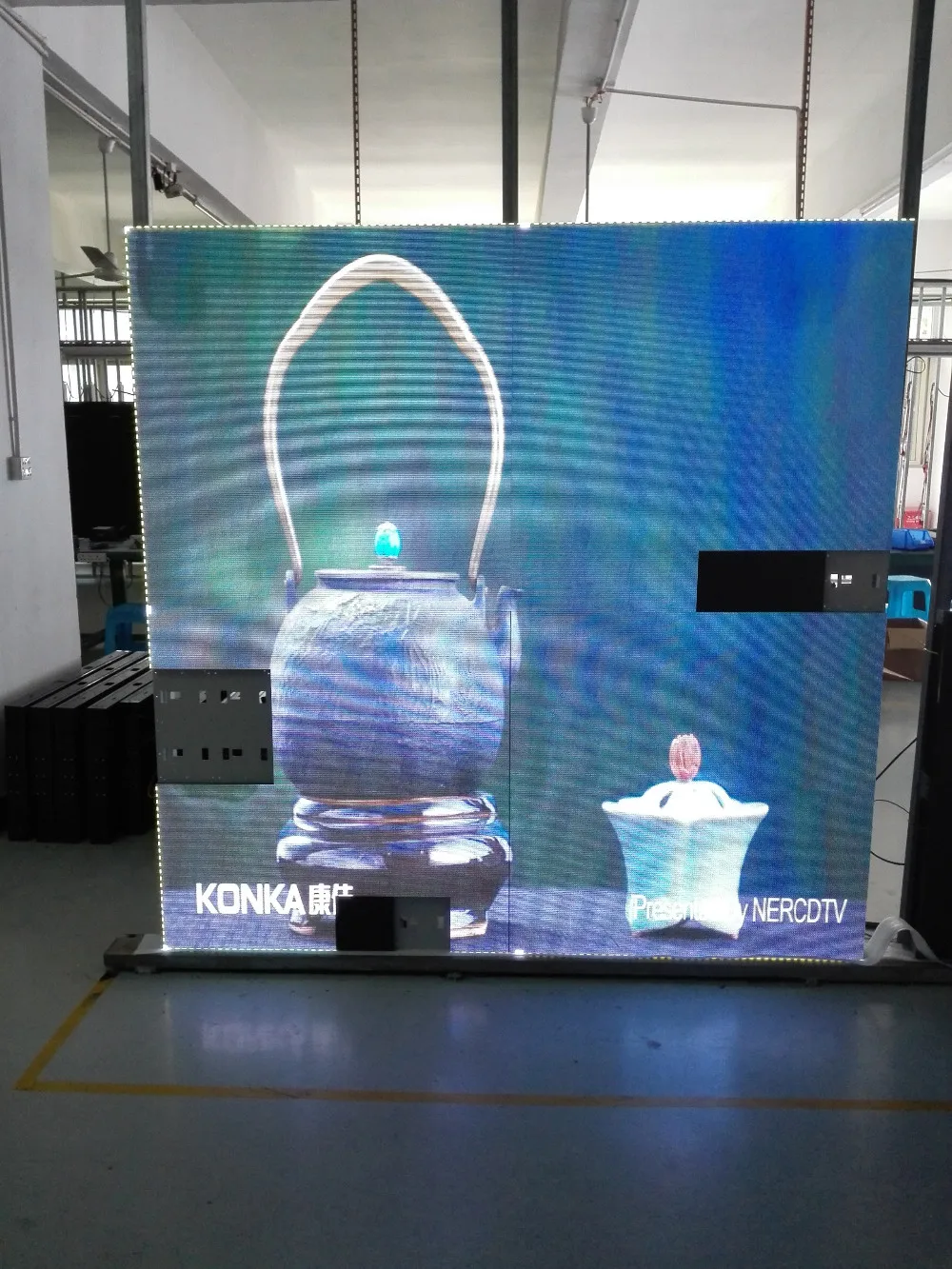

IMG_20150429_123709p2.5 led video wall
