Item specifics
  • Model Number: BX-5Q1 +
  • Brand Name: MDS RISE
  • is_customized: Yes
  • Display Function: Graphics
  • Tube Chip Color: Full Color
  • Usage: Indoor
  • Pixels: 256*8160, 512*80
  • Place of Origin: China (Mainland)
Product Description

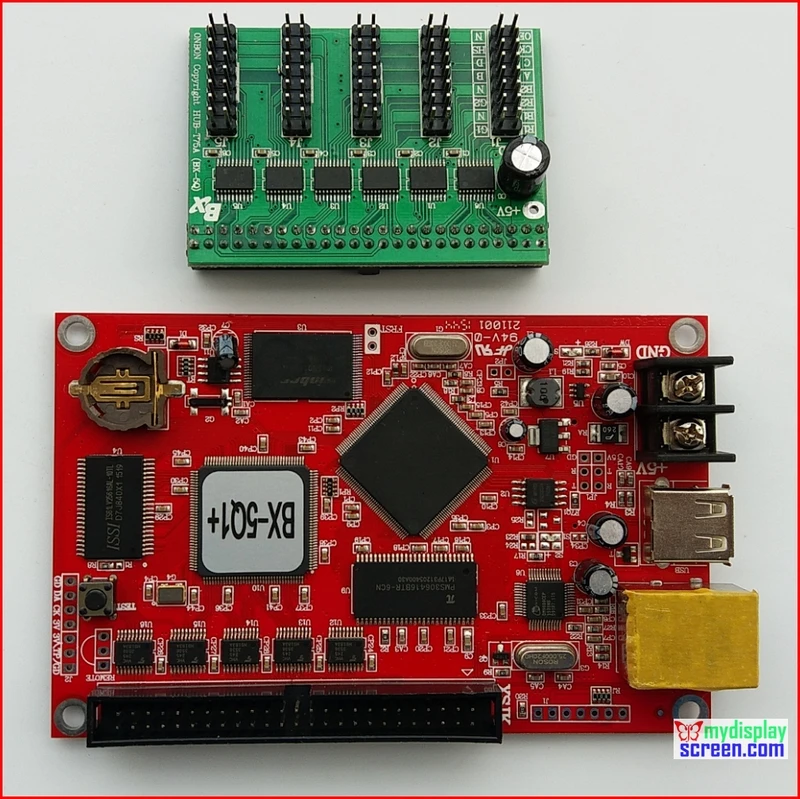

bx-5q1-1-new-1



For Full color display control card,
1.Control range: 512*80, 256*160
2.Use For: All of full color led module
3.Communicate mode:  USB Disk/ RJ45/Ethernet
4.weight:200g

 bx-5q1-1-new

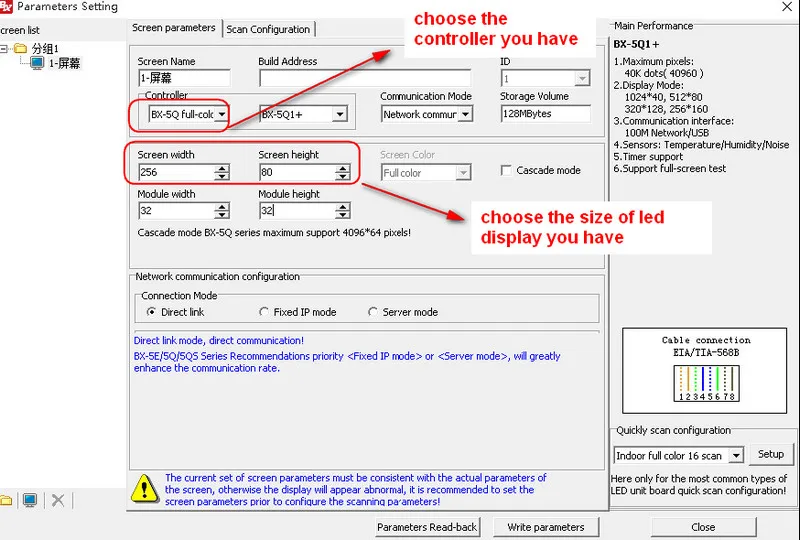

Simple Software Windows
3
1


BX-5Q+ application
With 100M Ethernet port and USB port;
Best price, simple operations, and high performance price ratio;
Widely used in kinds of small LED lintel full color display screen;
Support cascade function, maximum area: 256K pixels (width≤4096,height≤640);

BX-5Q+ feature
Support 100M Ethernet port, bound with MAC mechanism, no need of IP settings, identify and connect intelligently;
Ethernet communication mode support direct link/Ethernet/Internet;
Support U disk play;
Smart control area, abundant display functions;
Good technicals, best quality, 3.5V-6V wide working voltage, -40°C-80°C working temperature;
Support firmware update;
Support temperature sensor and temperature & humidity sensor;
Support infrared remote control//select program by buttons;


BX-5Q+ latest function
Add high brightness/ high refresh rate mode;
Add the function of refresh rate as to solve the problem of virtual lights;
Add neon area and neon stunt group which with stronger activeness and effect;
Add 8 kinds of graphic display modes on Text/Graphic area;
Easy to operate, with good application test


Technical parameters:
Product name               BX-5Q1+ asynchronous full color lintel controller
Products status            The latest 5th generation products, put into the market on Sep, 2013.
Control area                  40K pixels
                                        1024*40 848*48 640*64 512*80
                                        416*96 352*112 320*128 272*144 256*160
Memory storage           128MByte
Gray scale                     256/128/64 grade
Screen types                 All kinds of LED full color screen
Software function         Groups cluster management/multi-program editing/multi-area display/multi-language version
Program type                Normal/Shared program
Program quantity          Support 512 programs, each program with 32 areas
Area type                        Neon/overlay text/graphic/subtitle/animation/time/clock/timer/temperature/temperature & humidity
Frame mode                 The advanced colorful border/area border
Clock mode                   Dial/in Chinese and English/timer (all support multi-groups)
Communication port    support 100M Ethernet and USB port
Interface                         1 nos 50PIN/160 lines
Sensor supported         temperature/temperature & humidity
Remote control             Select program/lock screen/brightness adjustment/power on & off/screen test

Bright regulation          16 grades brightness, support manual and auto-timing adjustment/remote control
Power on/off                 Support auto-timing power on & off/software power on & off/remote control
Working voltage           5V(3.5V-6V wide voltage)
Maximum power          ≤2.5W
Working temperature   -40
SDK                                support DLL
Software                       LEDshowTW2014(V14.05.16.00)
User manual                "LedshowTW user manual"

Adapter                         HUB-T75A  HUB-T74A  HUB-T08A  HUB-Adapter





Packing list:
1 PCS control card
Software Will be provide online
